ForeHead-Mini

ForeHead-Mini

EndoChor® ForeHead ™ And Forehead ™ adjusted to fit any type of Forehead ™ Lift Procedures
EndoChor® ForeHead-Mini ™

EndoChor® ForeHead-Mini ™

EndoChor® ForeHead-Mini ™  A Refined Size for Precise Applications   The ForeHead-Mini ™ provides a smaller scale of implants with the same predictability and security for more fine local precise applicativons in the forehead region. In addition, it provides a suitable solution for patients who have thinner, soft tissue and forehead skin.
A Delicate Platform
A Delicate Platform
An ultra-thin platform with multiple ultrafine spines providing sensitivity for patients who may be affected by palpability, yet carrying all the physical properties of the larger scale of EndoChor® ForeHead-Mini ™

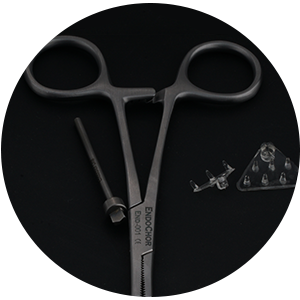

EndoChor® Instrument Kit
EndoChor® Instrument Kit
This instrument tool kit is specially manufactured with an ergonomic design to ease the implant application.      Kit includes sterilization case, two cranial bone hole cutters with depth control and implant installment tool.
EndoChor® Forehead-Mini ™ Device
C-EST-ENFLD30-M

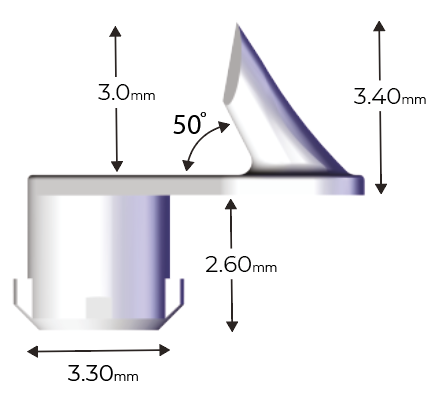

EndoChor® Forehead-Mini ™ 3.0mm
Low profile device features 3.0mm tines and is designed for patients that need a smaller, sub-10mm incision.
3.0 mm

ForeHead ™ Lift Procedures With EndoChor ® Forehead-Mini ™

1 | Create The Port Of Entry
1 | Create The Port Of Entry
Make a sagittal, paramedian inscions depending on the surgeon’s preference. Perform the proper dissection for adequate structural release.
2 | Create The Anchoring Hole
2 | Create The Anchoring Hole
Determine the lifting position of the desired structure (i.e., brow, forehead skin). Mark the implantation site so that the EndoChor® device will finally lie under the designated anatomical structure. Deploy the EndoChor® Bone Hole Cutter to create a nest on the frontal bone at the marked site. Drill all the way to the depth control cuff. Aspirate and dry the hole to remove all bone debris.
3 | Place The EndoChor®  ForeHead-Mini ™
3 | Place The EndoChor®  ForeHead-Mini ™
Device Insert the EndoChor® Forehead-Mini ™  into the hole. Apply controlled pressure until the platform is integrated with the frontal bone surface.
4 | Dispatching the EndoChor®  ForeHead-Mini ™
4 | Dispatching the EndoChor®  ForeHead-Mini ™
From The Loading Tool  Dispatch the applicator from the implant by gently turning the insertion tool in a counter-clockwise fashion.
5 | Elevate The Brow Or ForeHead ™ skin
5 | Elevate The Brow Or ForeHead ™ skin
Elevate the brow or forehead skin to the desired position. The implant may lie either anterior or lateral to the incision.

6 | Secure The Tissue Fixation Apply digital pressure to ensure the integration of the tissue by the device spines. Close the incision properly. A gentle pressure dressing is recommended to avoid any possible detachment.
A Thinner Profile for An Ultra-fine Fixation  The EndoChor®  ForeHead- Mini ™ has a miniaturized plate with embedded multi-fine spikes that is smaller than EndoChor®  ForeHead ™. With a thin plate for reduced visibility, and a small size to be introduced through inscions below-10 mm, the  EndoChor® ForeHead-Mini ™  Is ideally suitable for patients with below average scalp thickness or, for more refined applications desired by the surgeon.  Reduced visibility and incision size enables the EndoChor® ForeHead-Mini ™ to be placed securely below the hairline region.  Due to the lower mass of EndoChor®  ForeHead- Mini ™, it will readily absorb to an impalpable size,  smoothly improving the patient’s post-operative experience.
Written and edited by Professor Dr. Mehmet Veli Karaaltın.
