ForeHead

ForeHead

EndoChor® ForeHead ™ And Forehead ™ adjusted to fit any type of Forehead ™ Lift Procedures
EndoChor® ForeHead ™

EndoChor® ForeHead ™

A Refined Size for Precise Applications   The ForeHead ™ provides a smaller scale of implants with the same predictability and security for more fine local precise applicativons in the forehead region. In addition, it provides a suitable solution for patients who have thicker, soft tissue and forehead skin.

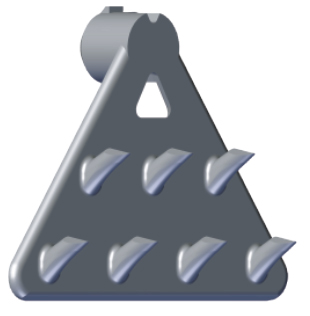

A Strong Delicate Platform
A Strong Delicate Platform
An ultra-thin platform with multiple ultrafine spines providing sensitivity for patients who may not affected by palpability, yet carrying all the physical properties of the larger scale of EndoChor® ForeHead ™
EndoChor® Instrument Kit
EndoChor® Instrument Kit
This instrument tool kit is specially manufactured with an ergonomic design to ease the implant application.      Kit includes sterilization case, two cranial bone hole cutters with depth control and implant installment tool.
EndoChor® ForeHead ™ Device
C-EST-ENFLD30
EndoChor® ForeHead ™ 3.0
This EndoChor® uses tines that are 3.0mm in length to reduce  issues of palpability or sensitivity
3.0 mm
22102
EndoChor® ForeHead ™ 3.5
Features tines that are 3.5mm in length and is best for patients with average to thick scalps where more secure fixation is desired.
3.5 mm

ForeHead ™ Lift Procedures

1 | Create The Port Of Entry
Make a sagittal, median, paramedian or temporal inscions depending on the surgeon’s preference. Perform the proper dissection for adequate
structural release.
2 | Determine The Drill Hole Site
2 | Determine The Drill Hole Site
Pull craniocaudally the desired structures  (ie. Brow, ForeHead skin) to determine the desired  position. Mark the implantation site so that the  EndoChor®device will finally lie under the intact  hair-bearing scalp.
3 | Drill The Hole
3 | Drill The Hole
Deploy the EndoChor® Bone Hole Cutter to create  a nest at the marked site. The hole should be in  the boundaries of the temporal fusion line laterally  and the coronal suture posteriorly. Drill all the way to the depth control cuff. Aspirate and dry the hole  to remove all bone debris.
4 | Load The EndoChor® Implant
4 | Load The EndoChor® Implant
Use the EndoChor® applicator tool to snatch the  implant from its packaging shell. One spike like  tip of the tool settles into the hole in the EndoChor®  plate and the other end embraces the implant fixation knob.
5 | Place The EndoChor Device
5 | Place The EndoChor Device
Insert the EndoChor® Forehead ™ implant into the drilled hole. Apply controlled pressure until the platform is integrated with the cranium.  Dispatch gently the applicator from the  implant.
6 | Pull The Tissue Cranio-Caudally
6 | Pull The Tissue Cranio-Caudally
Lift the brow or forehead skin to the desired  position. The implant may lie either anterior or  lateral to the incision line.



7 | Secure The Tissue Fixation
7 | Secure The Tissue Fixation
Apply digital pressure to ensure the integration  of the tissue by the device spines. Close the  incision properly. A gentle pressure dressing is  recommended to avoid any possible detachment.
Written and edited by Professor Dr. Mehmet Veli Karaaltın.
